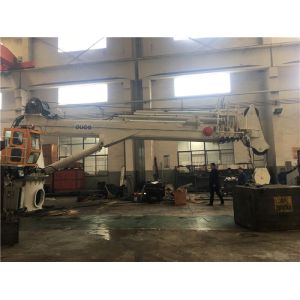

3T@30M&30T@6M Marine hydraulic powered knock telescopic boom deck crane
Product description
Hydraulic Telescopic Boom Crane for cargo ship can work under any sea condition for its robustness and operation flexibility. All the loading in any working radius is completely safe even though handling loads is very close to SWL of crane. All of the cranes in the Telescopic Boom line offer several key features that make them powerful solutions for the marine work environment. The most notable of these features include: Extended boom reach with the dexterity for accurate, safe, and efficient material handling.
Main Features And Advantages
The advantages of the telescopic cranes are low weight and less complex design making them maintenance-friendly.
1. Easy maintenance at all situation.
2. Self contained unit with integrated hydraulic power pack.
3. Fail-safe brakes on all movements.
4. Fully enclosed and equipped operator cabin with air condition.
5. The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load.
6. Base on many year's design and fabrication experience of crane and other similar equipment.
7. Suitable for all kinds of ships and low power consumption and high efficiency.
8. Welded and high strength box boom for easy maintenance.
9. With Many safety protection devices---hook up limiter and overload limiter, emergency stop button.
Safety protection
1. Overload protection system.
2. Main lifting motor with thermal protection.
3. Hooks with latch.
4. Rubber buffers.
5. Protective earthing.
Technical Specification
| SWL | 3T@30M&30T6M |
| Working Radius | 3~30m |
| Hoisting Speed | 0~15m/min |
| Hoisting Height | 35m |
| Slewing Speed | ~0.6r/min |
| Slewing Angle | 360° |
| Luffing Time | ~90s |
| Extension Time | ~90s |
| Dead Weight | 22t |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160K-4-H |
| Motor Power | 90KW |
| Motor Speed | 1780r/min |
| Power source | AC440V, 60Hz, 3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
General Arrangement
Customer Bulid
We are an integrated company of industry and trade,our factory specialize in this field for many years. We can design and manufacture any type marine/offshore cranes based on your requirements.
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm.
Optional equipment
# lower temperature package up to -40 C*.
# certification for personal lifting.
# wireless romote control
# operator cabin with AC and heating.
# ATEX package and certification.
# man riding winch.
# centralized grease system.
# multiple setting of load limiting system.
# automatic overload protection system .
# warning and working lights.
# load indicator system.
# other upon request.

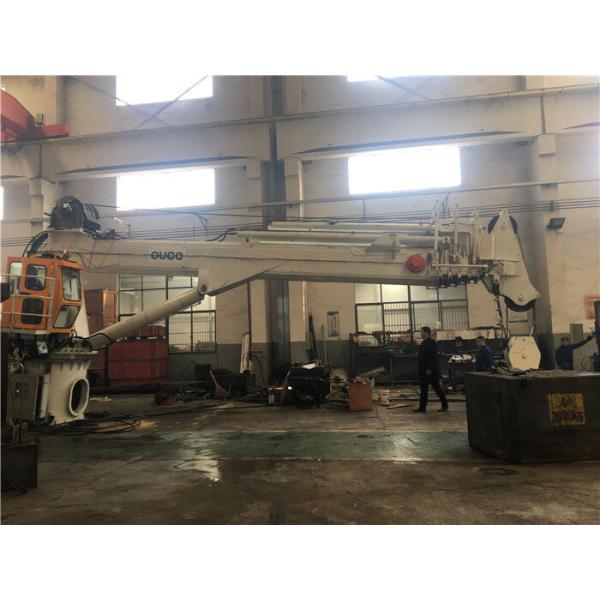

Detailed Images
FAQ
Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
