2.2T10M Knuckle Telescopic Boom Marine Deck Crane For Hoisting
Product description
OUCO provide the 2.2T10M Knuckle telescopic boom marine crane, which have lifting point, which is 2.2t at 10 m .
knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All OUCO series cranes can be equipped with different accessories and class certified by all leading classification societies.
Electric Marine Crane : End User Advantages
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5. 24 hours after sales services support.
Specification
| SWL | 2.2T10M |
| MAX. WORKING RADIUS | 10M |
| MIN. WORKING RADIUS | 2M |
| HOISTING SPEED | 0-12M/MIN |
| HOOK TRAVEL | 20m |
| SLEWING SPEED | 0.8R/MIN |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~40S |
| LUFFING ANGLE | 0-75° |
| DESIGN TEMPERTURE | -10 - 45 ° |
| WORKING CONDITION | TRIM ≤2° |
| | HEEL ≤5° |
| DESIGN TEMPERATURE | -10 - +40 ℃ |
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |

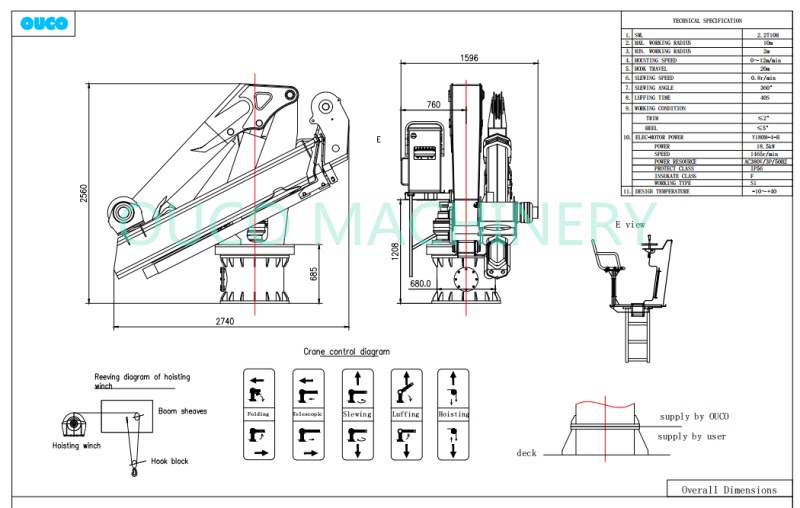

Drawing

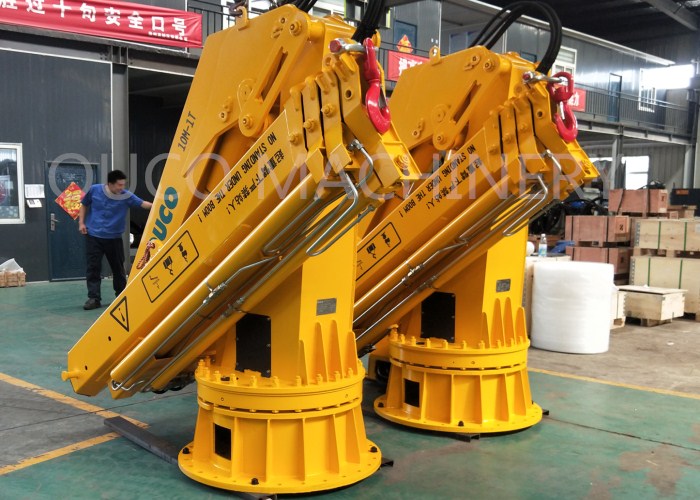

Detailed Images
Packing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
FAQ
1. Q: What's the working radius of your crane?
A: From 1m to 100m, we can also design and manufacture cranes according to your requirements.
2. Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
3. Q: Is this crane explosion-proof?
A: Sure, we can equip any extra function based on your requirement.
4. Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
5. Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.
For more details, please feel free to contact us.
