1T30M Pedestal telescopic jib crane with Affordable price
Product Description

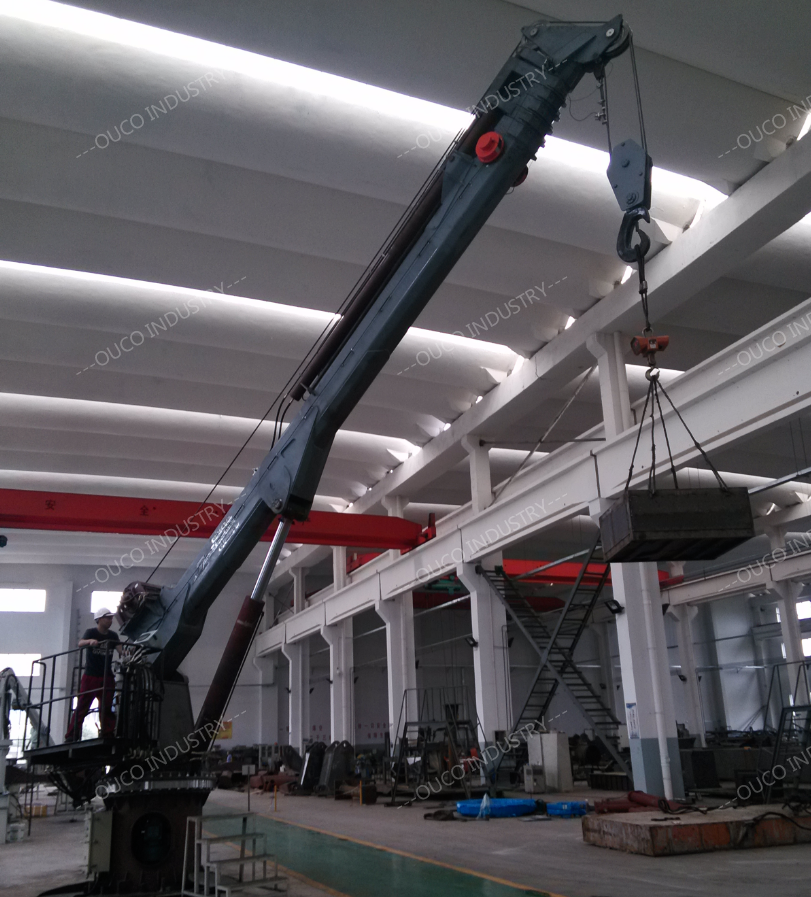

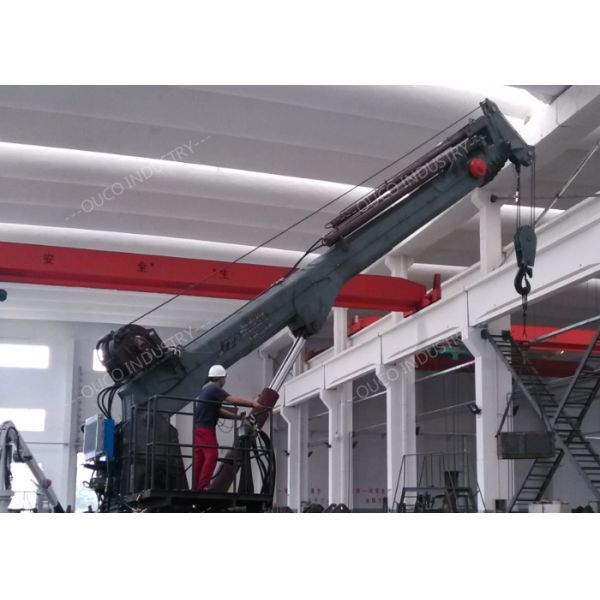

OUCO 1T30M telescopic jib crane is a pedestal crane with the function of swivel base, which can be adjusted freely according to the work needs.
The crane boom is telescopic and designed to support a larger working radius. Whether it is lifting cargo on the deck of the ship or cargo on the shore, it can be freely adjusted according to your needs.
We provide CCS certification according to customer requirements, and colors are also customized according to customer requirements. In order to ensure quality and follow up work progress, customers choose to visit our factory. We provide various data according to customer needs, and also conduct on-site demonstrations of cranes .
Product Feature
Suitable for some mild areas in the Pacific or Indian Ocean, whether it is a rescue ship or a cargo ship, a supply ship, this crane is very suitable.
The availability of telescopic or fixed jib extensions on telescopic jibs is not only easy to connect and use, but can extend the reach of the crane jib by up to 30 meters.
Technical Parameters
| SWL | 20t3m&10t10m&1t31m |
| Max. Working Radius | 31m |
| Min. Working Radius | 3 m |
| Hoisting Speed | 10 m/min&20m/min (according cagos weight) |
| Hoisting Height | 45 m |
| Slewing Speed | ~0.6 r/min |
| Slewing Angle | 360° |
| Luffing Time | ~75 s |
| Design Temperature | -10℃-45℃ |
| Power | 45 kw |
| Certificate | ABS/CCS/BV |

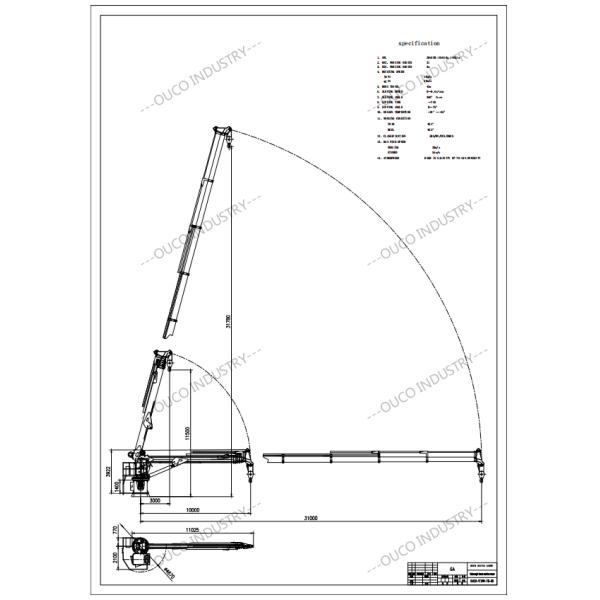

General Arrangement
Product Details
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
For more details, please feel free to contact us.
Product Tags:
|
|
1T 30M Pedestal Telescopic Jib Crane IP56 Protect Images
|
