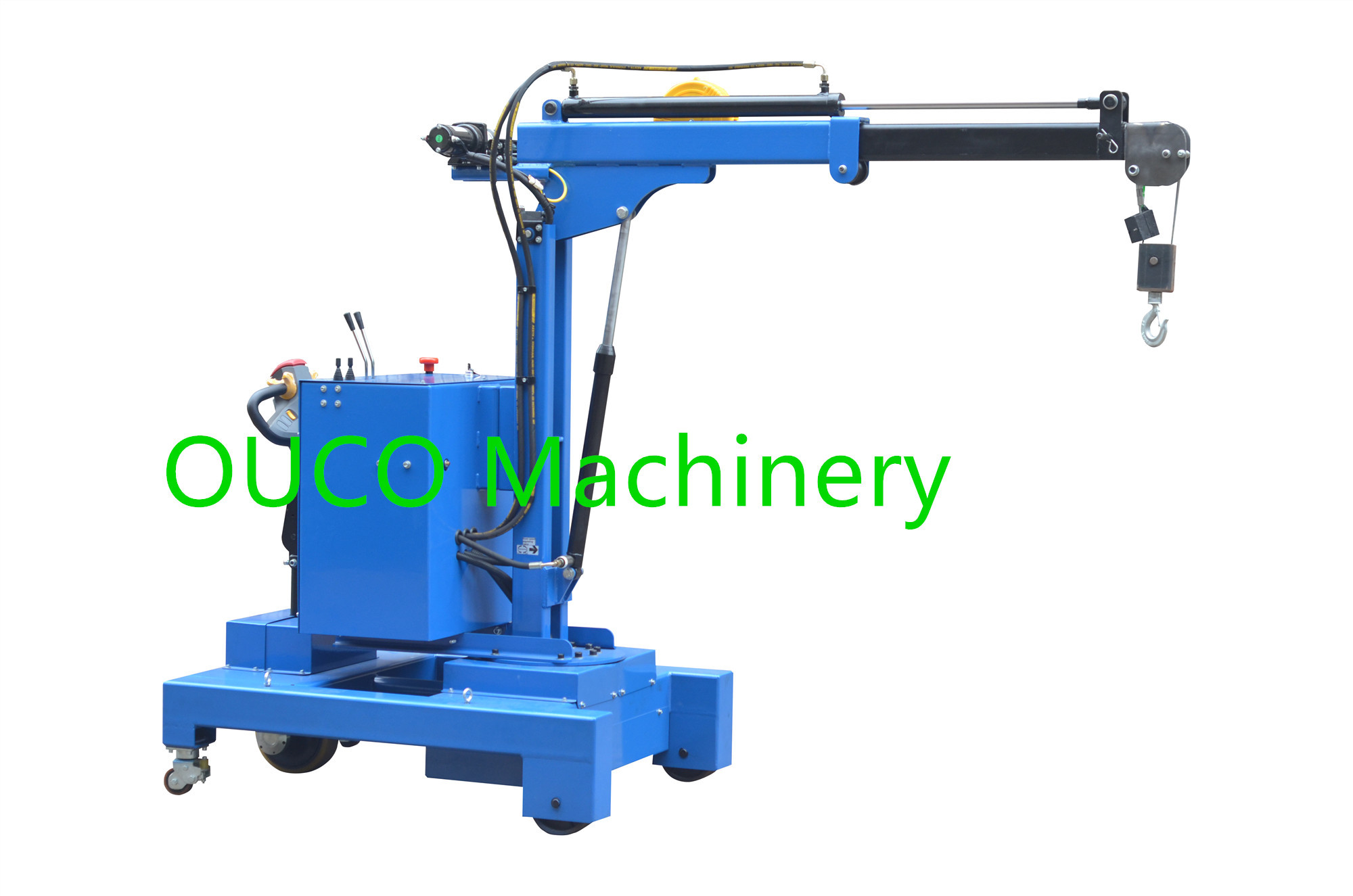

Portable electric crane with luffing and slewing Industries Floor Crane
Automatic electric floor crane. It's very suitable for working indoor situation.
The crane boom can be telescopic, the length can be design as customer request. It's with winch and hook for mult-working situation.
It's moving design with wheels and electric moving.
Product Feature
1. Running smoothly.
2. Rates of speed can be changed.
3. 270 degrees continually rotary.
4. Both electro and manual to control.
5. Operate conveniently.
6. Safety and reliability.
Technical Parameters
| Item | Full electric slewing crane |
| Hoisting type | Electric type |
| Max boom length for every section(mm) | 1070 | 1710 | 1960 | 2210 | 2410 |
| Max loading capacity for every section(kg) | 450 | 210 | 185 | 145 | 120 |
| Max height from hook to ground for every section(mm) | 1960 | 2420 | 2560 | 2710 | 2840 |
| Max distance from hook to end for every section(mm) | 700 | 1160 | 1350 | 1570 | 1730 |
| Height from hook to ground when boom is horizontal(mm) | 1340 | 1340 | 1340 | 1340 | 1340 |
| Distance from hook to end when boom is horizontal(mm) | 665 | 1305 | 1555 | 1805 | 2005 |
| Max slewing angle | 270° |
| Max working radius(mm) | 2410 |
| Min working radiu(mm) | 1070 |
| Battery(V/Ah) | 12/80*2 |
| Charger(V/A) | 24/15 |
| Dimension:length* width *height(mm) | 1310*1010*1910 |
| Diameter of wheels(PU)(mm) | Ф180/Ф250 |
| Net weight(kg) | 1204KG |
| Specification of pump station | 24V/2.2kw |
| Specification of driving wheel | 0.7kw |
| Dimension of driving wheel(mm) | 250*80 |
Company introduction
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 25,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 are technical staff. Among that has five senior engineer and a total of 50 welder (who has got CCS, ABS and other main institutions' certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
OUCO provides high quality handling solutions and access systems for the Crane, port industries and various non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and denitrification environmental protection products in air pollution control field. Company products are widely used in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.
OUCO has agents in several countries and serves a global client base from strategic points in Europe, Asia, Africa, Australia and Middle East. It has an annual output of 11,000 tons of steel structure production capacity.
