Hydraulic Marine Knuckle Boom Crane 1T10M For Offshore

Brand Name : OUCO

Model Number : OUCO-1T10M-KBT

Certification : ABS/CCS/BV/ISO9001

Place of Origin : Jiangsu. China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 20 sets per year

Delivery Time : 40 working days

Packaging Details : Shipping Container/Wood Crate/nude

SWL : 1T10M

Working Radius : 3-10m

Hoisting Speed : 0-12m/min

Hoisting Height : 25m

Slewing Speed : 1r/min

Slewing Angle : 360°

Luffing time : 35S

Power resource : AC440V/60HZ

Power : 22KW

Quality : New

Product name : Folding Boom Hydraulic Marine knuckle boom Lifting cranes For Small Deck

Contact Now

Folding Boom Hydraulic Marine knuckle boom Lifting cranes For Small Deck

Product description

The FB series, knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All FB series cranes can be equipped with different accessories and class certified by all leading classification societies.

Technical Specification

SWL
1T10M
Max.working radius
10M
Min.working radius
3M
Hoisting height
25M
Hoisting speed
12m/min
Slewing speed
1r/min
Slewing angle
360°
HPU 22KW
Speed 1450rpm
Luffing angle 0- 75 °
Design temperature -20~+40 °
Working condition heel≤5° trim≤2°
Dead Weight
2700kG

Advised oil flow

 35L/Min
Oil tank capacity 100L

Brand OUCO
Spare parts 1 set ( If needed, more spare parts are available to be provided according to customers' requirements )
Warranty 1 year( If needed, warranty time is available to be extended according to customers' requirements )

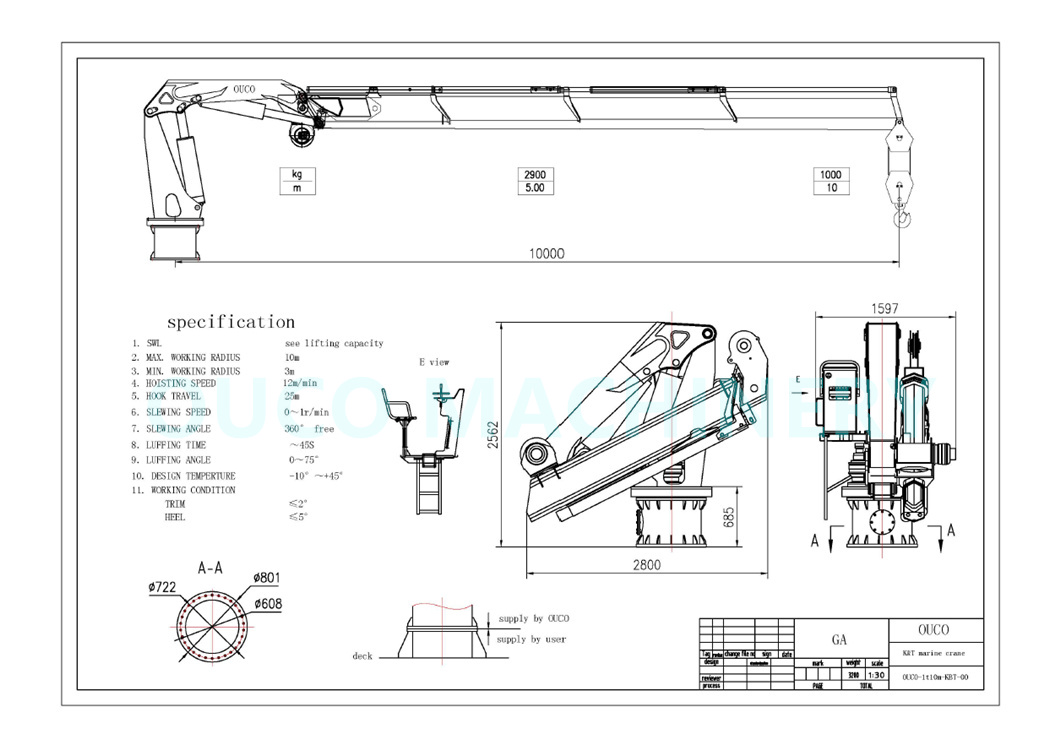

Drawing

Hydraulic Marine Knuckle Boom Crane 1T10M For Offshore

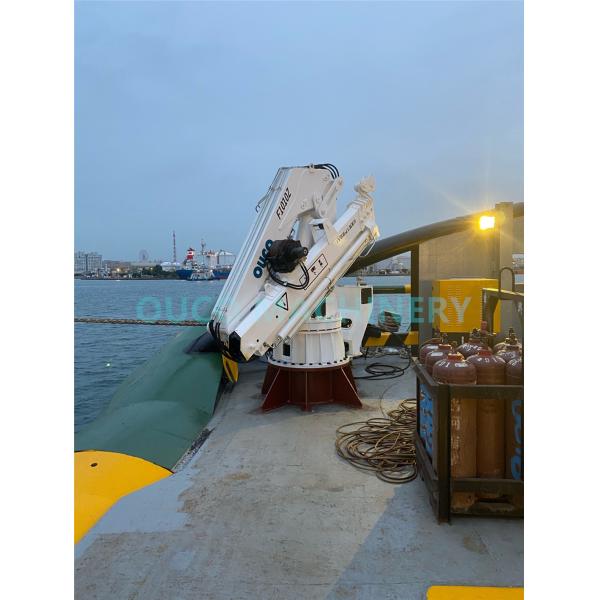

Detailed Images

Hydraulic Marine Knuckle Boom Crane 1T10M For Offshore

Packing

Hydraulic Marine Knuckle Boom Crane 1T10M For Offshore

Customer Visit And Exhibition

Hydraulic Marine Knuckle Boom Crane 1T10M For Offshore

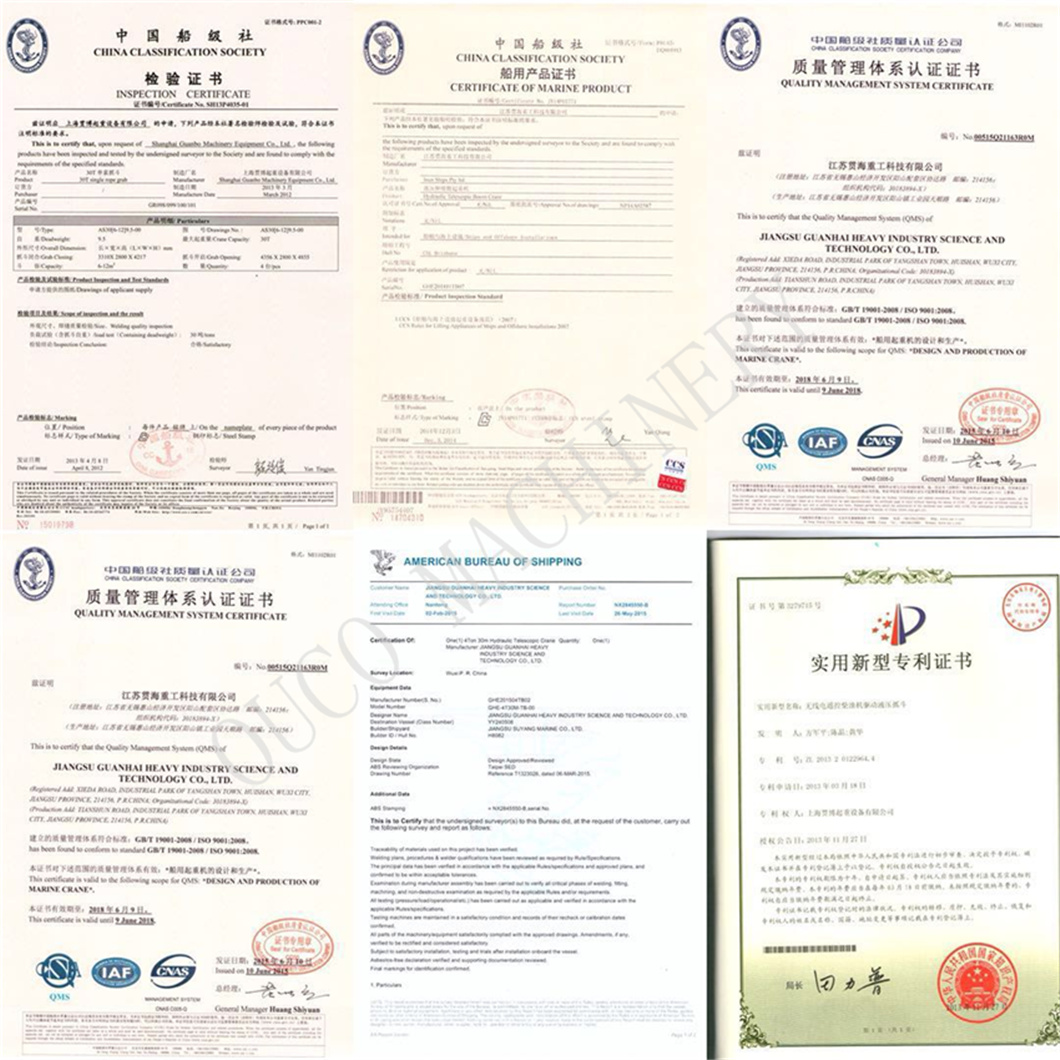

Certificate

Hydraulic Marine Knuckle Boom Crane 1T10M For Offshore

FAQ

1.Q: What's the working radius of your crane?
A: From 1m to 100m, we can also design and manufacture cranes according to your requirements.

2. Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.

3. Q: Is this crane explosion-proof?
A: Sure, we can equip any extra function based on your requirement.

4. Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.

5. Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.

For more details, please feel free to contact us.
